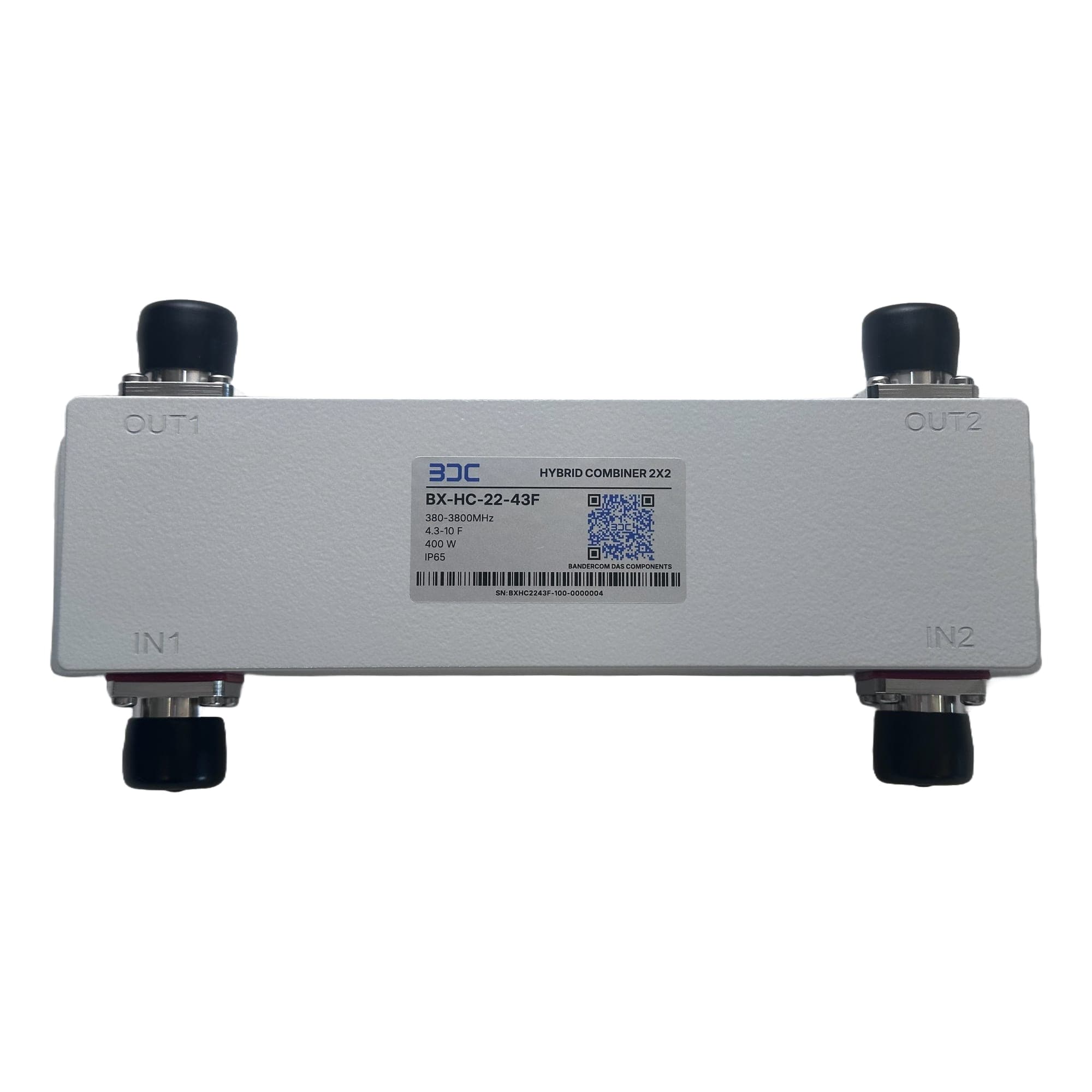

BX-HC-22-43F
2×2 Hybrid Combiner
Two-input, two-output broadband hybrid combiner, frequency range 380–3800 MHz.
5GLTEVIRVEVIRVE 2DMR
Specifications
| Performance | |
|---|---|
| Frequency range | 380–3800 MHz |
| Insertion loss | ≤ 4 dB 380–3800 MHz, incl. hybrid loss |
| Isolation | ≥ 30 dB · typ. 32 dB 380–3800 MHz, port-to-port |
| VSWR | ≤ 1.20 · typ. 1.15 380–3800 MHz |
| Return Loss | ≥ 21 dB · typ. 23 dB 380–3800 MHz, all ports |
| PIM | ≤ −160 dBc · typ. −163 dBc IM3, 3rd order @ 900 MHz, 2 × 20 W |
| Impedance | 50 Ω |
| DC pass-through | Port 1 → Port 3, Port 2 → Port 4, max 6.5 A, AISG 2.0 conform |
| Total input power | 400 W Average |
| Mechanical | |
| Connectors | 4.3-10 Female (IEC 61169-54) |
| Dimensions (L × W × H) | 240 × 59.5 × 46.5 mm Without connectors |
| Weight | 1.25 kg |
| Colour | Grey |
| Mounting | Wall / Mast (brackets sold separately) |
| Environmental | |
| Ingress protection | IP65 |
| Operating temperature | -35 – 75 °C |
| Relative humidity | 95 % Non-condensing |
