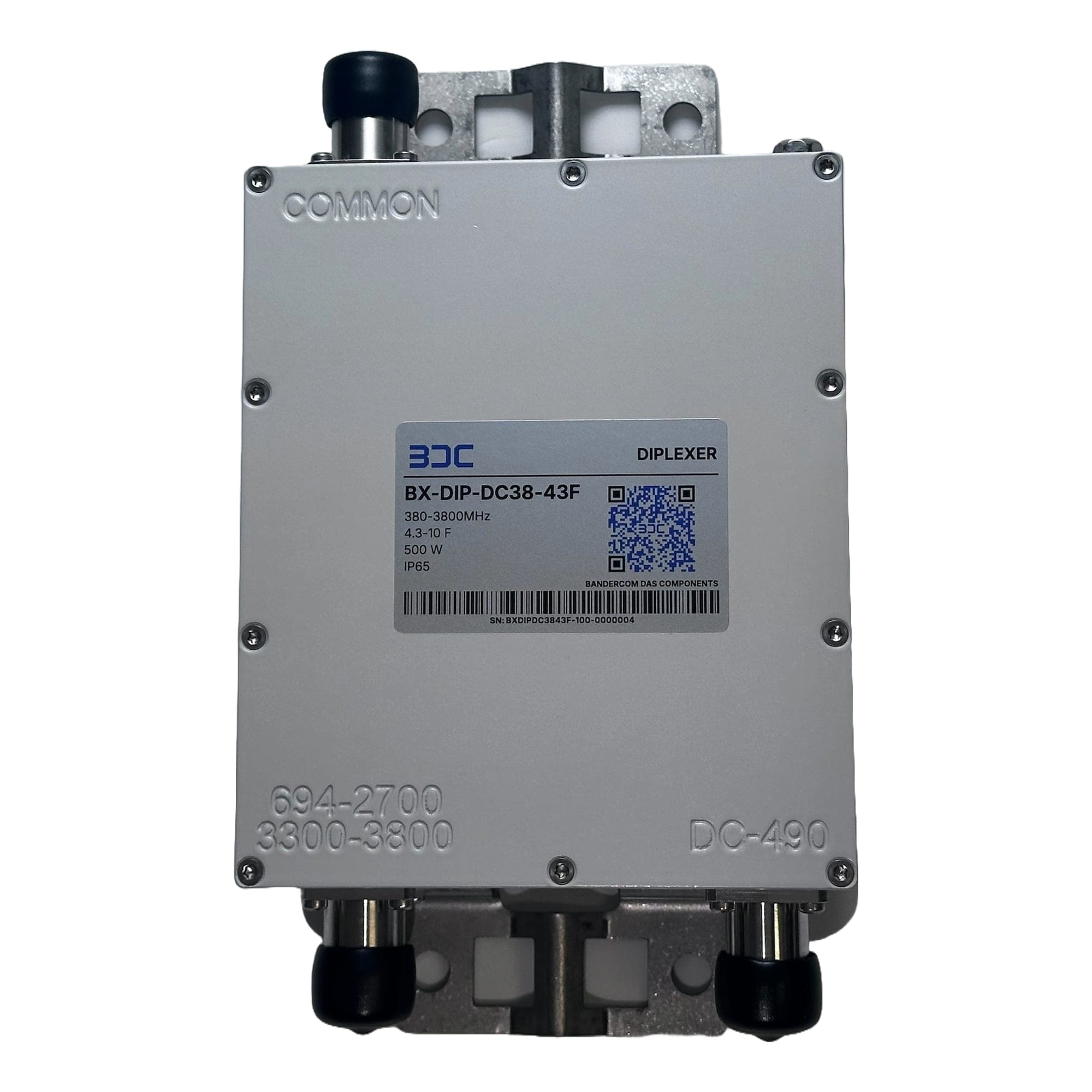

BX-DIP-DC38-43F
Diplexer DC–490 / 694–3800 MHz
Broadband diplexer combining DC–490 MHz (port 1) with 694–2700 MHz and 3300–3800 MHz (port 2) into the common port 3.
Datasheet rev. B · updated 6 November 2026
Specifications
| Performance | |
|---|---|
| Frequency range | DC–490 / 694–2700 / 3300–3800 MHz |
| Insertion loss | ≤ 0.3 dB Incl. tolerances |
| Isolation | ≥ 50 dB · typ. 56 dB All bands |
| VSWR | ≤ 1.20 · typ. 1.15 All bands |
| Return Loss | ≥ 21 dB · typ. 23 dB All bands, all ports |
| PIM | ≤ −160 dBc · typ. −163 dBc IM3, 3rd order @ 900 MHz, 2 × 20 W |
| Impedance | 50 Ω |
| DC pass-through | Max 1 A, max 60 V DC (AISG 2.0, § 6.4) |
| Total input power | 500 W Average |
| Mechanical | |
| Connectors | 4.3-10 Female (IEC 61169-54) |
| Dimensions (L × W × H) | 153.15 × 128 × 40 mm Without connectors |
| Weight | 2.1 kg |
| Colour | Grey, RAL 7047 |
| Mounting | Wall / Mast (brackets sold separately) |
| Environmental | |
| Ingress protection | IP65 |
| Operating temperature | -40 – 65 °C |
| Relative humidity | 95 % Non-condensing |
Selection and use
A diplexer combines two frequency ranges onto one cable or separates them. Port 1 covers DC–490 MHz, which takes the radio systems operating below that limit, such as TETRA networks (including VIRVE at 380–400 MHz) and analogue and digital UHF professional radio (PMR, DMR). Port 2 covers the mobile bands 694–2700 MHz and 3300–3800 MHz, and port 3 is the common output.
The typical use is combining a public-safety or professional radio network and an operator network into the same in-building antenna network without a hybrid's split loss: insertion loss is at most 0.3 dB. Port-to-port isolation ≥ 50 dB keeps the radio and mobile network sources apart, and PIM is ≤ −160 dBc with 2 × 20 W carriers at 900 MHz.
The same diplexer also works the other way round, separating the radio network and the mobile bands from a common trunk line for different equipment. DC passes between port 1 and the common port (max 1 A, 60 V DC). IP65 ingress protection allows installation in car parks as well.
