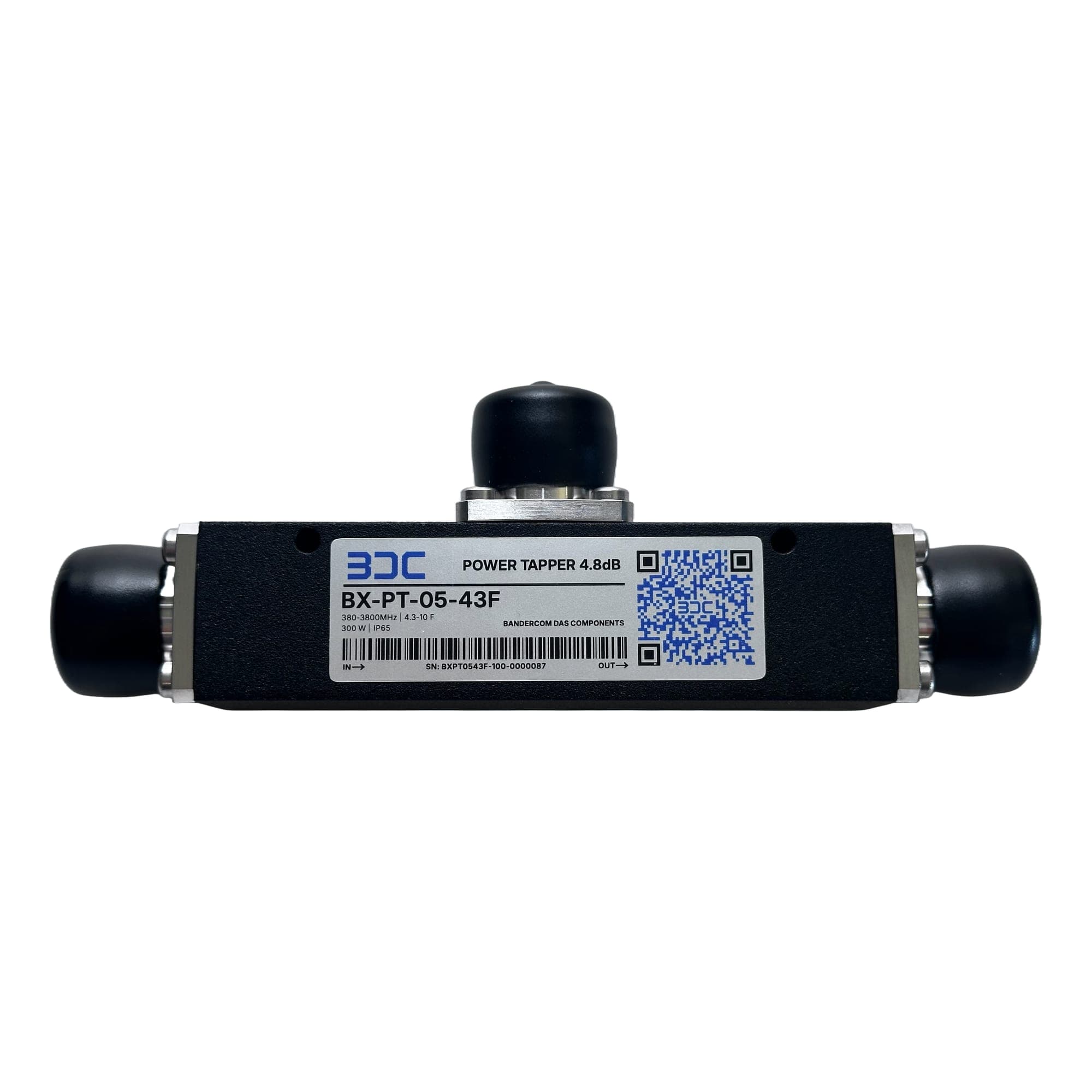

BX-PT-05-43F — RF Tapper 4.8 dB

BX-PT-05-43F

RF Tapper 4.8 dB

Asymmetric Power Splitter 4.8 dB

RF tapper (asymmetric power splitter), 4.8 dB coupling, for antenna branches on a trunk line. Frequency range 380–3800 MHz.

5GLTEVIRVEVIRVE 2DMR

Datasheet rev. B · updated 6 November 2026

Specifications

Specifications
Performance
Frequency range
380–3800 MHz
Insertion loss
≤ 2.15 dB
380–3800 MHz
VSWR
≤ 1.20 · typ. 1.15
380–3800 MHz
Return Loss
≥ 21 dB · typ. 23 dB
380–3800 MHz, all ports
PIM
≤ −160 dBc · typ. −163 dBc
IM3, 3rd order @ 900 MHz, 2 × 20 W
Impedance
50 Ω
Total input power
300 W
Average
Mechanical
Connectors
4.3-10 Female (IEC 61169-54)
Dimensions (L × W × H)
96 × 25 × 25 mm
Without connectors
Weight
0.32 kg
Colour
Black
Mounting
Wall / Mast (brackets sold separately)
Environmental
Ingress protection
IP65
Operating temperature
-20 – 65 °C
Relative humidity
95 %
Non-condensing
Performance by frequency band
Parameter (MHz)380–470694–9601710–21702300–27003300–3800
Coupling (dB)5.4 ± 0.44.8 ± 0.74.6 ± 0.74.8 ± 0.75.3 ± 0.5
Insertion loss (dB)≤ 1.65≤ 2.15≤ 2.15≤ 2.05≤ 1.90

Selection and use

Coupling 4.8 dB, through-loss at most 2.15 dB.

A tapper is installed in the trunk line at the antennas: the coupled port feeds the antenna branch, and the through port continues the trunk line to the next tapper. The 380–3800 MHz range covers the TETRA bands, UHF professional radio, the mobile bands and 5G band n78.

Choose the coupling by the link budget so that every antenna gets its planned power: high coupling values near the start of the line, low values near the end. The guaranteed through-loss tells how much the trunk-line power drops at the tapper across the whole band.

Tappers handle 300 W average power, return loss is ≥ 21 dB and PIM ≤ −160 dBc with 2 × 20 W carriers at 900 MHz. Use power splitters for branching and termination loads for unused ports.
