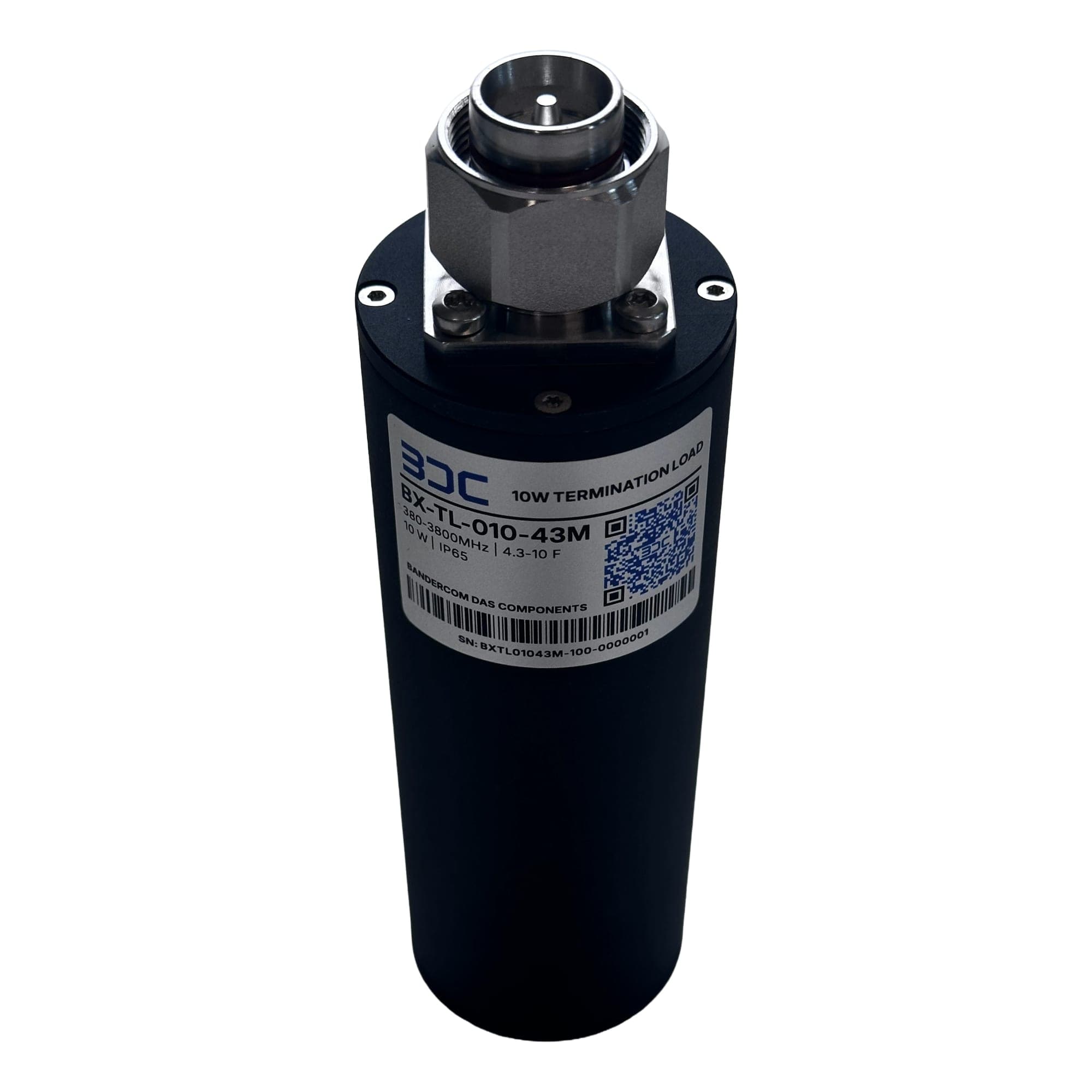

BX-TL-010-43M — Low PIM Termination Load 10 W

BX-TL-010-43M

Low PIM Termination Load 10 W

10 W low PIM termination load (dummy load) for closing off unused ports. Frequency range 380–3800 MHz.

5GLTEVIRVEVIRVE 2DMR

Datasheet rev. B · updated 6 November 2026

Specifications

Specifications
Performance
Frequency range
380–3800 MHz
VSWR
≤ 1.20 · typ. 1.15
380–3800 MHz
Return Loss
≥ 21 dB · typ. 23 dB
380–3800 MHz
PIM
≤ −160 dBc · typ. −163 dBc
IM3, 3rd order @ 900 MHz, 2 × 5 W
Impedance
50 Ω
Total input power
10 W
Average
Mechanical
Connectors
4.3-10 Male (IEC 61169-54)
Dimensions (L × W × H)
112 × 40 × 40 mm
Without connectors (Ø40 × 112 mm)
Weight
0.85 kg
Colour
Black
Environmental
Ingress protection
IP65
Operating temperature
-35 – 75 °C
Relative humidity
95 %
Non-condensing

Selection and use

PIM is measured with 2 × 5 W carriers.

A termination load goes on every unused port: a free input or output of a hybrid combiner and an empty output of a power splitter. The 380–3800 MHz range covers the TETRA bands, UHF professional radio, the mobile bands and 5G band n78.

Size the power rating by the power arriving at the port. An unused hybrid output receives a share of the combined power of all sources (half in a 2×2 hybrid, a quarter in a 4×4), so it usually needs a larger load than an empty splitter output. A free hybrid input needs less, since it only receives the power leaking from the other inputs, attenuated by the isolation.

Return loss is at least 21 dB and PIM at most −160 dBc. A poorly matched or PIM-prone load shows up as interference across the whole network, so choose loads to the same requirements as the other components.
