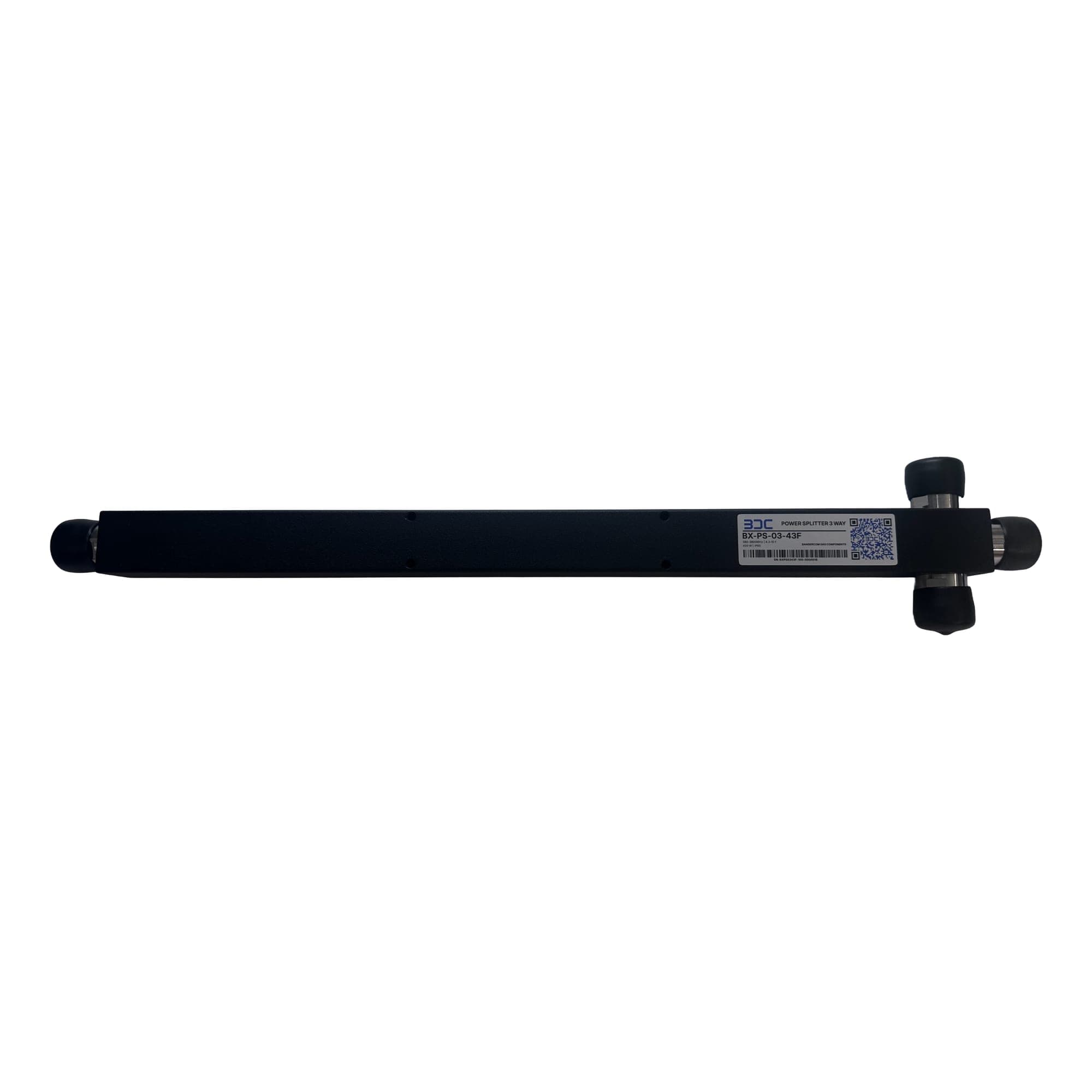

BX-PS-03-43F
3-Way Power Splitter
Three-way power splitter for symmetric network distribution, frequency range 380–3800 MHz.
Datasheet rev. B · updated 6 November 2026
Specifications
| Performance | |
|---|---|
| Frequency range | 380–3800 MHz |
| Insertion loss | ≤ 5.15 dB 380–3800 MHz |
| VSWR | ≤ 1.20 · typ. 1.15 380–3800 MHz |
| Return Loss | ≥ 21 dB · typ. 23 dB 380–3800 MHz, all ports |
| PIM | ≤ −160 dBc · typ. −163 dBc IM3, 3rd order @ 900 MHz, 2 × 20 W |
| Impedance | 50 Ω |
| Total input power | 400 W Average |
| Mechanical | |
| Connectors | 4.3-10 Female (IEC 61169-54) |
| Dimensions (L × W × H) | 350 × 25 × 25 mm Without connectors |
| Weight | 0.65 kg |
| Colour | Black |
| Mounting | Wall / Mast (brackets sold separately) |
| Environmental | |
| Ingress protection | IP65 |
| Operating temperature | -35 – 75 °C |
| Relative humidity | 95 % Non-condensing |
| Parameter (MHz) | 380–470 | 694–960 | 1710–2170 | 2300–2700 | 3300–3800 |
|---|---|---|---|---|---|
| Insertion loss (dB) | ≤ 4.90 | ≤ 4.95 | ≤ 5.05 | ≤ 5.15 | ≤ 5.10 |
| Amplitude balance (dB) | ±0.20 | ±0.20 | ±0.30 | ±0.50 | ±0.60 |
Selection and use
Splits the signal to three outputs. Insertion loss is at most 5.15 dB.
A power splitter sits in the distribution stage of an in-building network, branching a trunk line to the antenna branches of a floor or part of a building. The 380–3800 MHz range covers the TETRA bands, UHF professional radio, the mobile bands and 5G band n78, so one splitter serves every system connected to the network.
Choose the splitter by the link budget: every split attenuates the signal, and the loss is stated as a guaranteed maximum. Guaranteed return loss ≥ 21 dB means reflected power stays low at every port, and PIM ≤ −160 dBc is measured with 2 × 20 W carriers at 900 MHz.
Pair splitters with tappers for long trunk lines and with termination loads for unused ports. IP65 ingress protection allows installation outside the equipment room as well, and average power handling is 400 W in splitter use.
