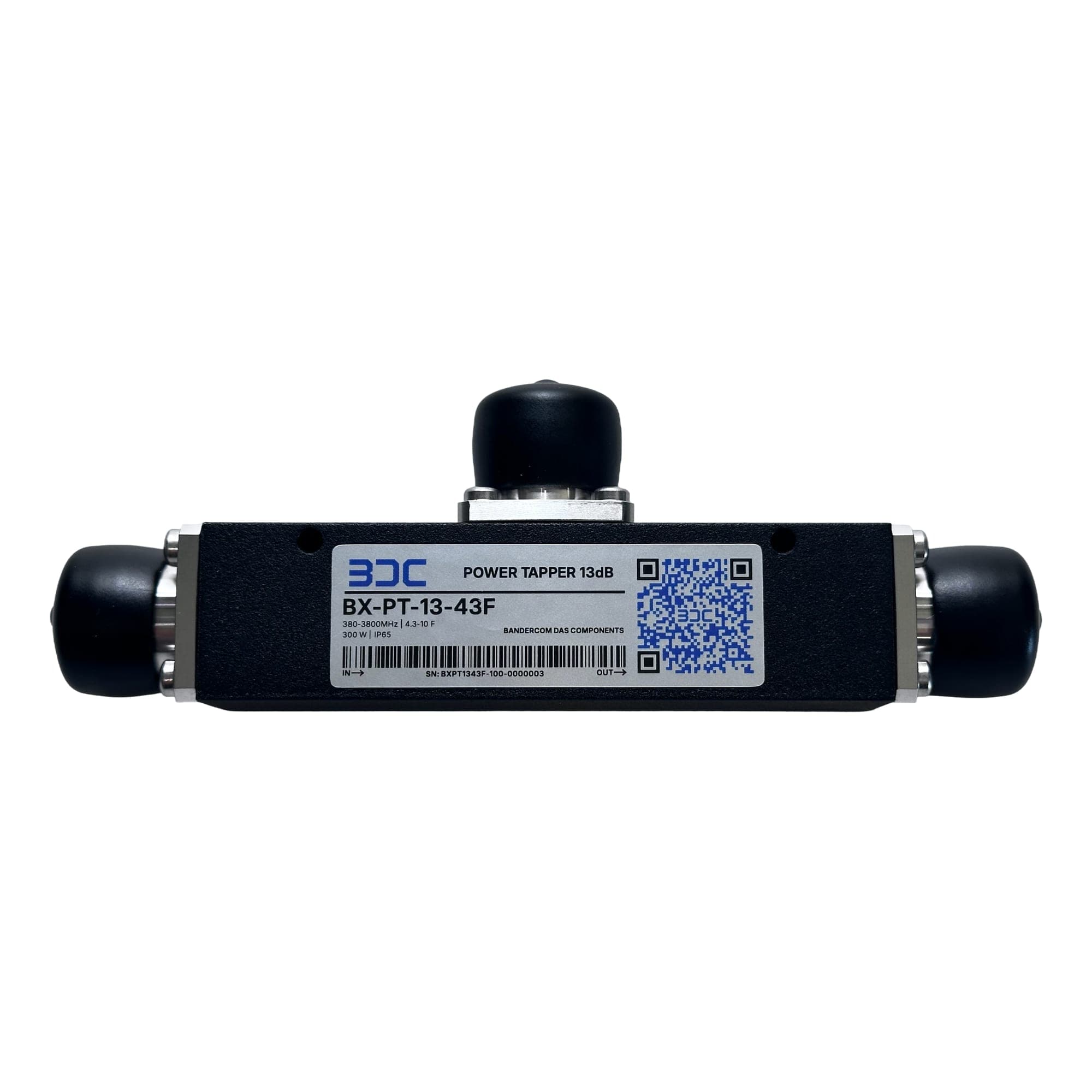

BX-PT-13-43F
RF Tapper 13 dB
Asymmetric Power Splitter 13 dB
RF tapper (asymmetric power splitter), 13 dB coupling, for antenna branches on a trunk line. Frequency range 380–3800 MHz.
Datasheet rev. B · updated 6 November 2026
Specifications
| Performance | |
|---|---|
| Frequency range | 380–3800 MHz |
| Insertion loss | ≤ 0.4 dB 380–3800 MHz |
| VSWR | ≤ 1.20 · typ. 1.15 380–3800 MHz |
| Return Loss | ≥ 21 dB · typ. 23 dB 380–3800 MHz, all ports |
| PIM | ≤ −160 dBc · typ. −163 dBc IM3, 3rd order @ 900 MHz, 2 × 20 W |
| Impedance | 50 Ω |
| Total input power | 300 W Average |
| Mechanical | |
| Connectors | 4.3-10 Female (IEC 61169-54) |
| Dimensions (L × W × H) | 96 × 25 × 25 mm Without connectors |
| Weight | 0.32 kg |
| Colour | Black |
| Mounting | Wall / Mast (brackets sold separately) |
| Environmental | |
| Ingress protection | IP65 |
| Operating temperature | -20 – 65 °C |
| Relative humidity | 95 % Non-condensing |
| Parameter (MHz) | 380–470 | 694–960 | 1710–2170 | 2300–2700 | 3300–3800 |
|---|---|---|---|---|---|
| Coupling (dB) | 13.0 ± 0.7 | 12.9 ± 0.7 | 13.1 ± 0.7 | 13.2 ± 0.7 | 13.3 ± 0.8 |
| Insertion loss (dB) | ≤ 0.35 | ≤ 0.40 | ≤ 0.40 | ≤ 0.40 | ≤ 0.35 |
Selection and use
Coupling 13 dB, through-loss at most 0.4 dB.
A tapper is installed in the trunk line at the antennas: the coupled port feeds the antenna branch, and the through port continues the trunk line to the next tapper. The 380–3800 MHz range covers the TETRA bands, UHF professional radio, the mobile bands and 5G band n78.
Choose the coupling by the link budget so that every antenna gets its planned power: high coupling values near the start of the line, low values near the end. The guaranteed through-loss tells how much the trunk-line power drops at the tapper across the whole band.
Tappers handle 300 W average power, return loss is ≥ 21 dB and PIM ≤ −160 dBc with 2 × 20 W carriers at 900 MHz. Use power splitters for branching and termination loads for unused ports.
